8端口RS-422/485PCI通讯卡

●符合PCI总线协议2.2
●支持串行速度高达921.6 kbps，任意波特率设置
●8端口RS-232,或8端口RS-422/485
●OXuPC1954 UARTs支持128字节先进先出FIFO标准
●PCI即插即用自动分配输入/输出地址
●支持操作系统：Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, 和QNX
●提高系统性能的中断状态寄存器
●预留终端电阻空间
●RS-485数据流自动控制
●实用程序（ICOM工具）强大，易用
●通用PCI，支持3.3伏或5伏PCI总线信号
●10,00伏直流电浪涌保护

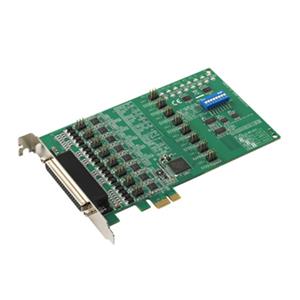

The PCI-1620 is an eight port RS-232, and PCI-1622 is an eight port RS-422/485 PCI communication card that are compatible with the PCI 2.2 bus specification, and offer transmission speeds up to 921.6 kbps.They also support any baud rate setting, for example 500 kbps is acceptable. PCI-1620 and PCI-1622 also come with high-performance OXuPC1954 UART with 128- byte FIFO to reduce CPU load. These components make your system more stable and reliable. Thus, the PCI-1620 and PCI-1622 are especially suitable for multitasking environments.
The PCI-1620 is an eight port RS-232, and PCI-1622 is an eight port RS-422/485 PCI communication card that are compatible with the PCI 2.2 bus specification, and offer transmission speeds up to 921.6 kbps.They also support any baud rate setting, for example 500 kbps is acceptable. PCI-1620 and PCI-1622 also come with high-performance OXuPC1954 UART with 128- byte FIFO to reduce CPU load. These components make your system more stable and reliable. Thus, the PCI-1620 and PCI-1622 are especially suitable for multitasking environments.
